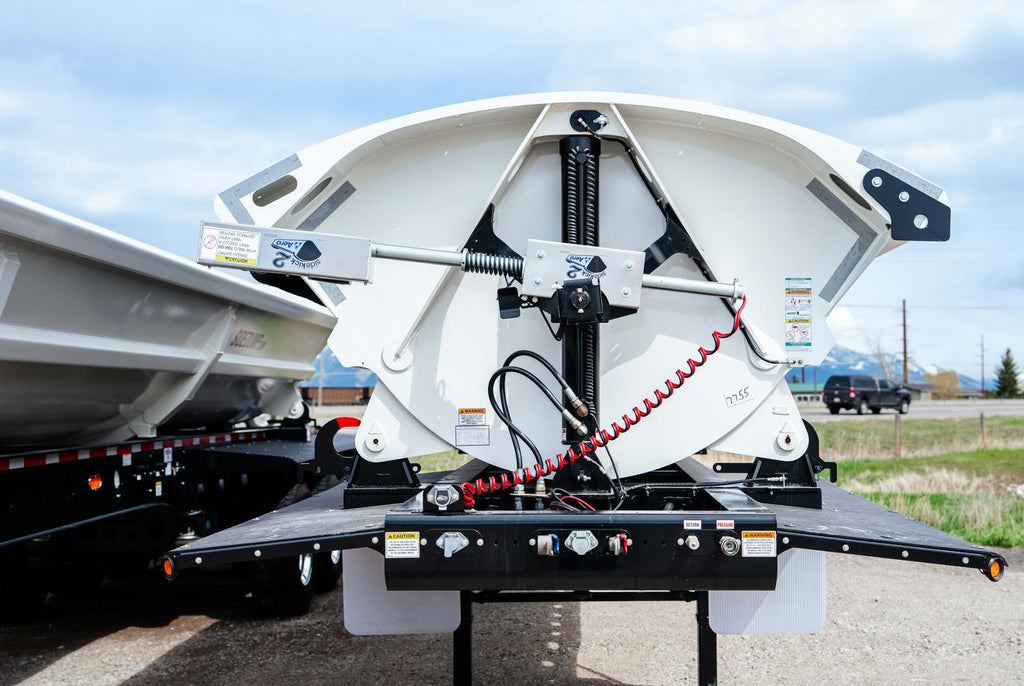

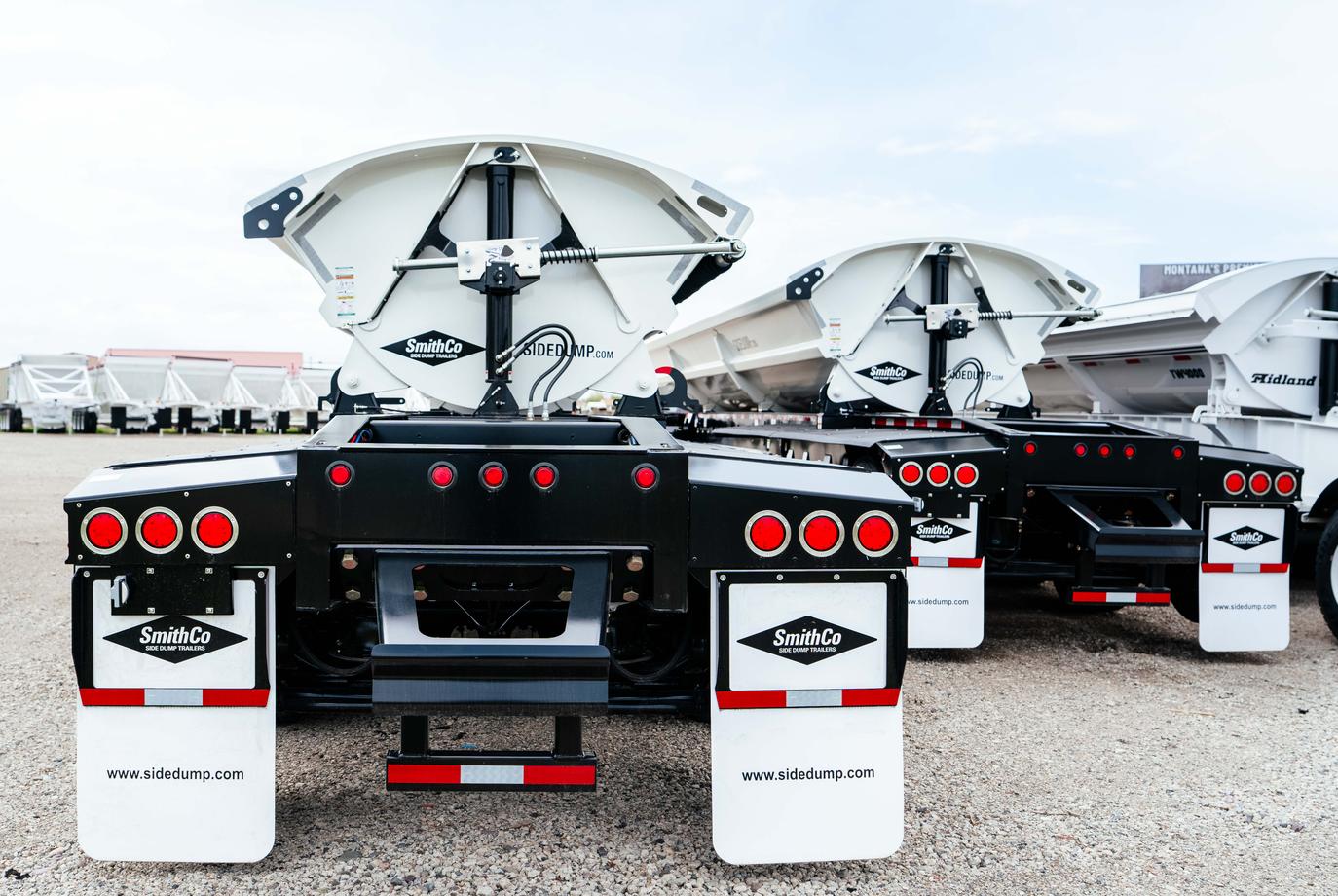

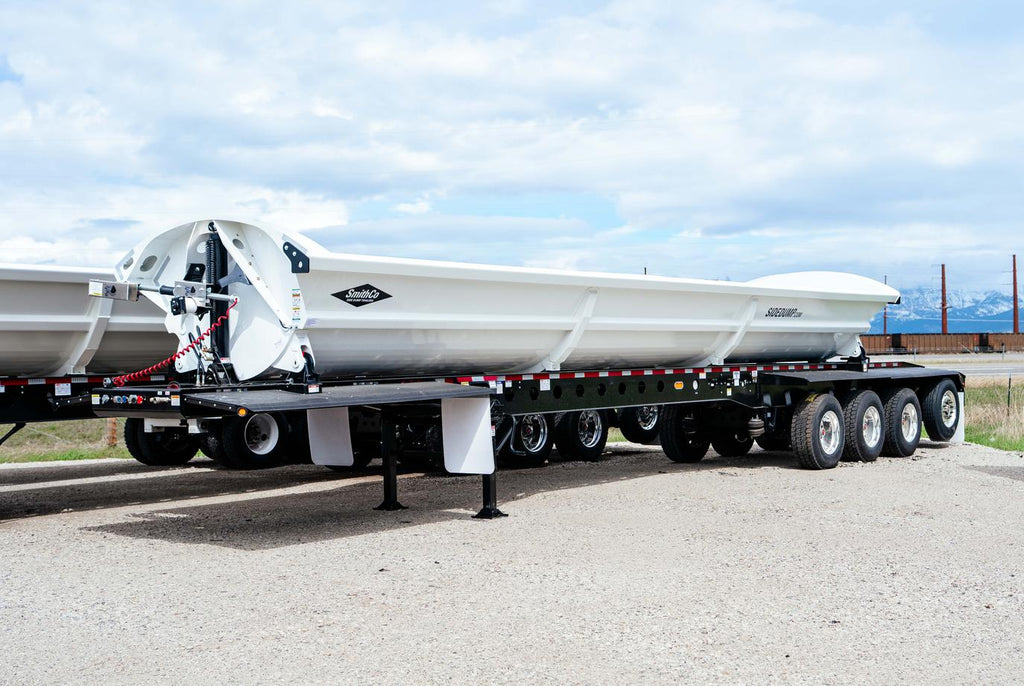

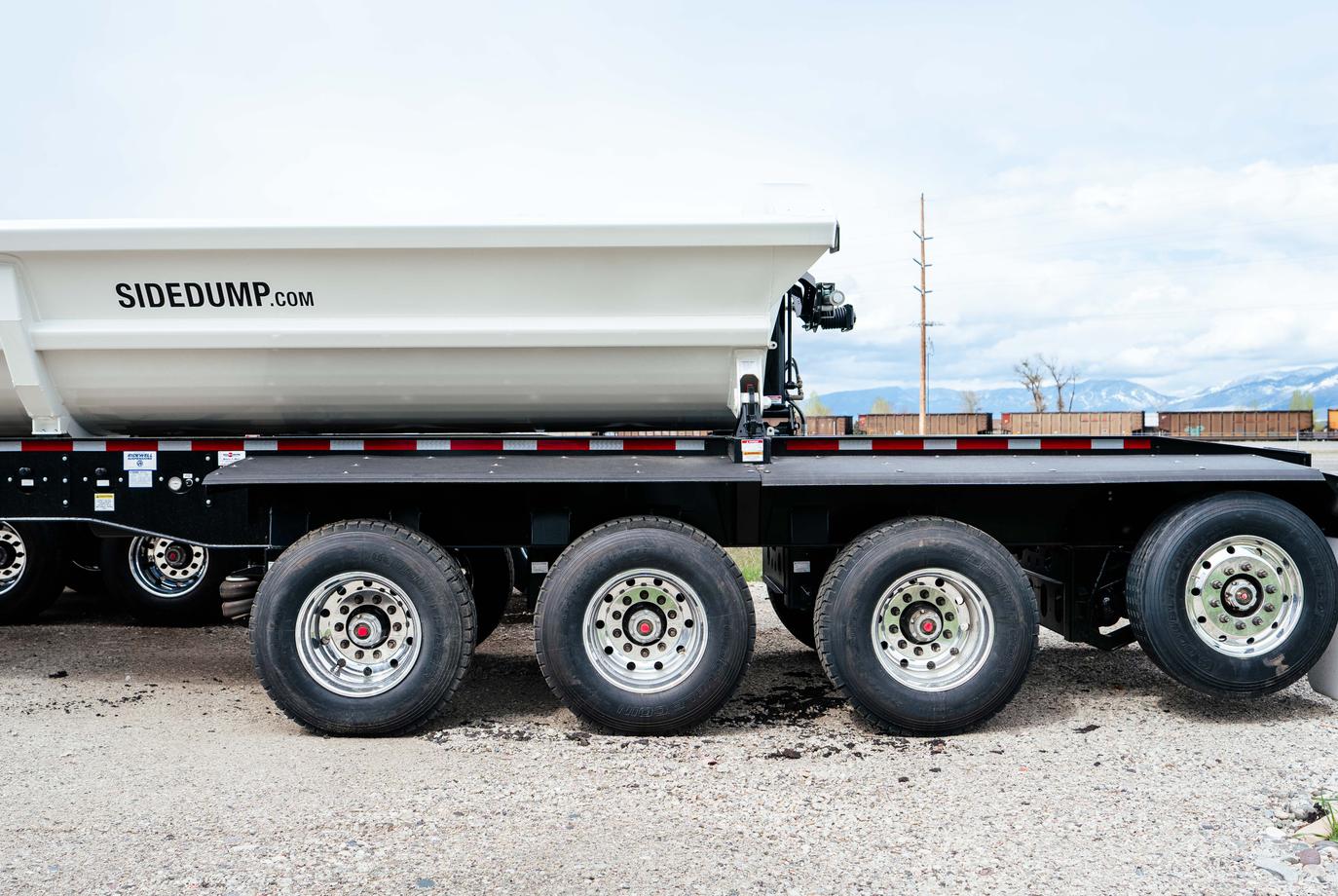

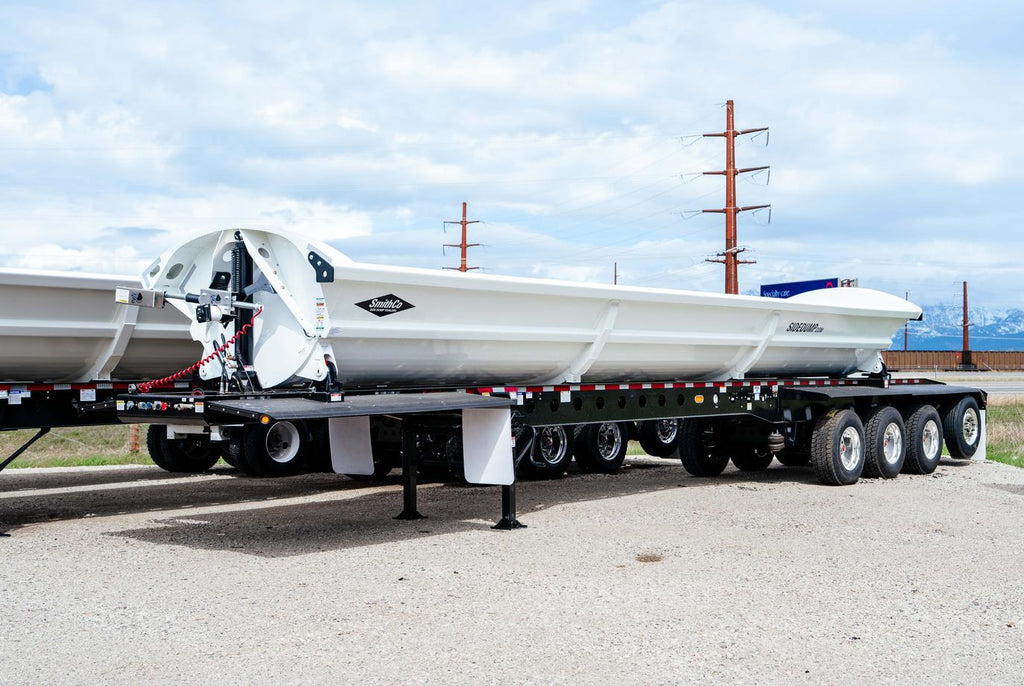

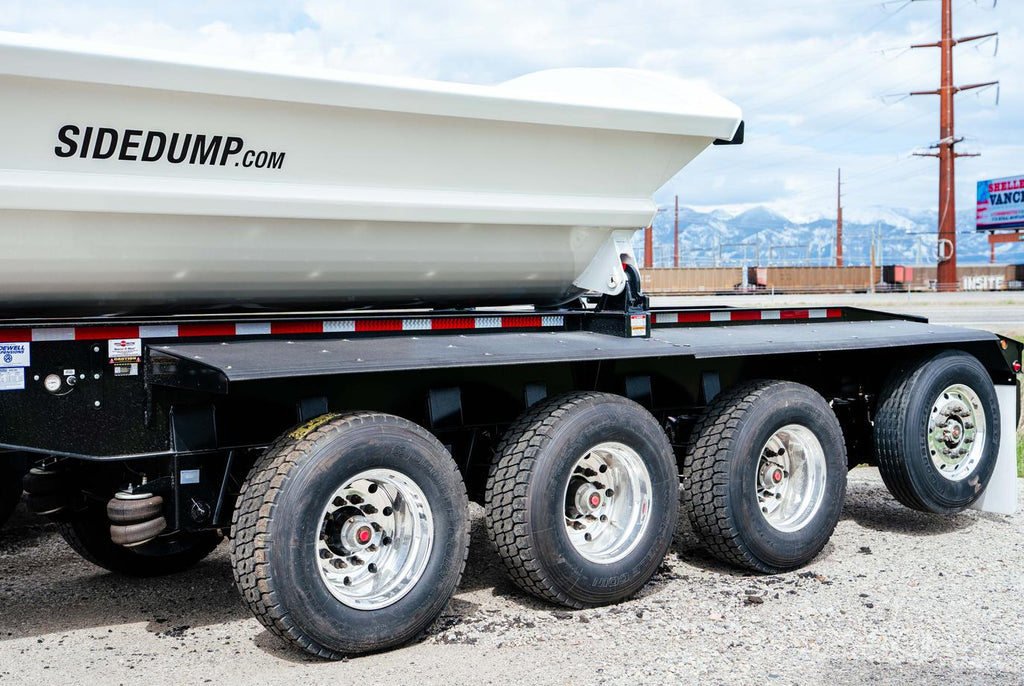

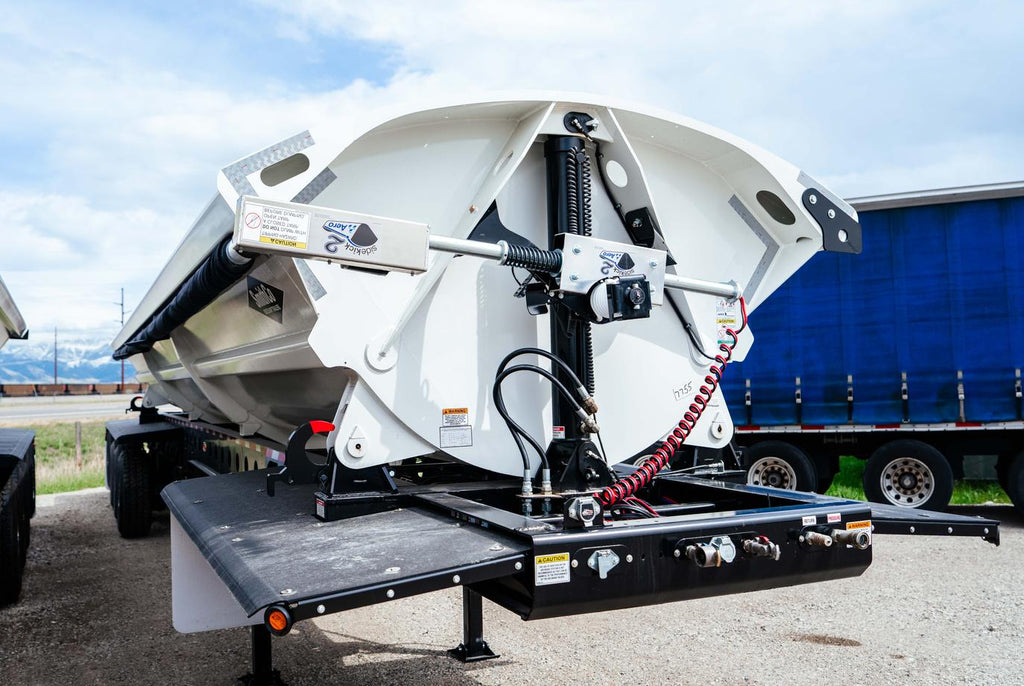

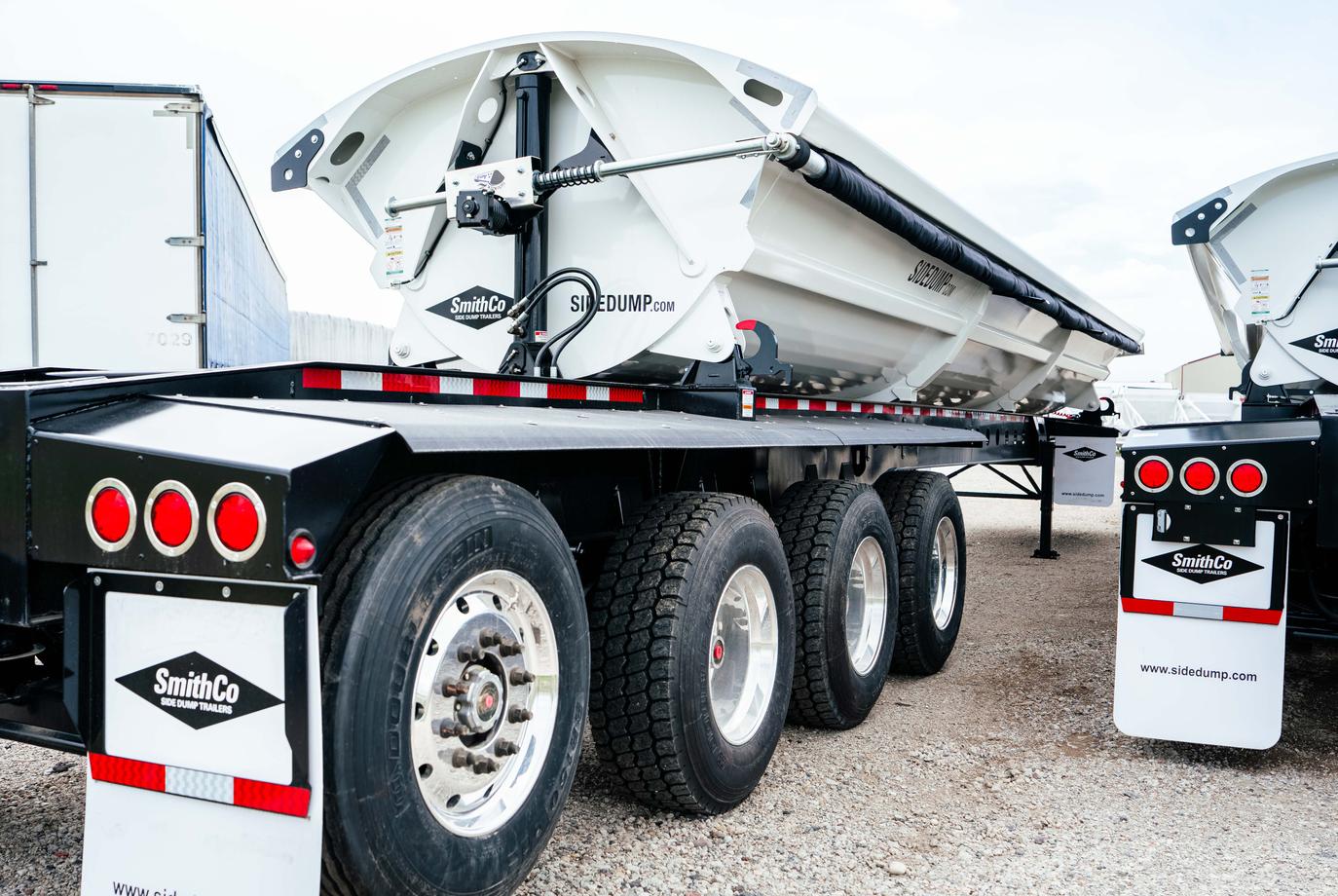

SMITHCO SX4 SIDE DUMP TRAILER

SmithCo SX4-49-36 – Side Dump, 49' x 36'

SmithCo SX4-49-36 side dump with 49' frame and 36' SX-ROUND BOTTOM tub with ¼" AR400 sides and ¼" AR400 floor.

Key Specs

• Width: 102" WIDE
• Frame Length: 49'
• Tub Length: 36'
• Tub Volume (water level): 36' SX – WATER LEVEL – 24.1 CUBIC YARDS
• Tub Volume (heaped): 36' SX – HEAPED – 32 CUBIC YARDS

Tub Construction

• Tub Style: SX-ROUND BOTTOM
• Tub Sides: ¼" AR400
• Tub Floor: ¼" AR400
• Tub Dividers: 0

Hydraulics & Control

• Hydraulics: 5" CYLINDERS
• Valve on Trailer: HYDRAULIC CONTROL VALVE ON TRAILER (AIR/HYDRAULIC)
• Grease Bank: GREASE BANK FOR HYDRAULIC CYLINDERS FRONT & REAR – STD
• Lock Out Switch: TARP LOCKOUT

Axles & Suspension

• Suspension: RIDEWELL RW260
• Axle Spacing: 54"-54"-60"
• Lift Axle: 1ST AXLE STANDARD LIFT/ 4TH AXLE 16.6K STEERABLE LIFT
• ABS Axles: 25K 1
• Non-ABS Axles: 25K 3
• Axle Track: 77.5"-STD
• Hubs: DURALITE-STD
• Brakes: 16-½"x7"
• Drums: CAST STEEL

Wheels & Tires

• Wheel Style: HUB-PILOTED U/M
• Wheel Type: AL SS 12.25x22.5 6 SUPER SINGLE ALUM ON TRIAXLE, (2) 9" ALUM ON STEERS
• Tires: 385/65R22.5 "J" PLY SUPER SINGLE 6 385/65 ON TRIAXLE, (2) 295/75 ON STEERS

Additional Features

• Dolly Legs: MARK V
• Fenders: ALL PLASTIC
• Tarp Brand: AERO
• Tarp Type: MESH-NON SEALED
• Pushblock: W STYLE PUSHBLOCK – STD
• Air Gauge: LARGE LIQUID FILLED AIR GAUGE ON DRIVER'S SIDE – STD

Lighting & Safety

• Tail Lights: 3 TAILLIGHTS – RED
• ID Lights: 5 ID LIGHTS AT REAR
