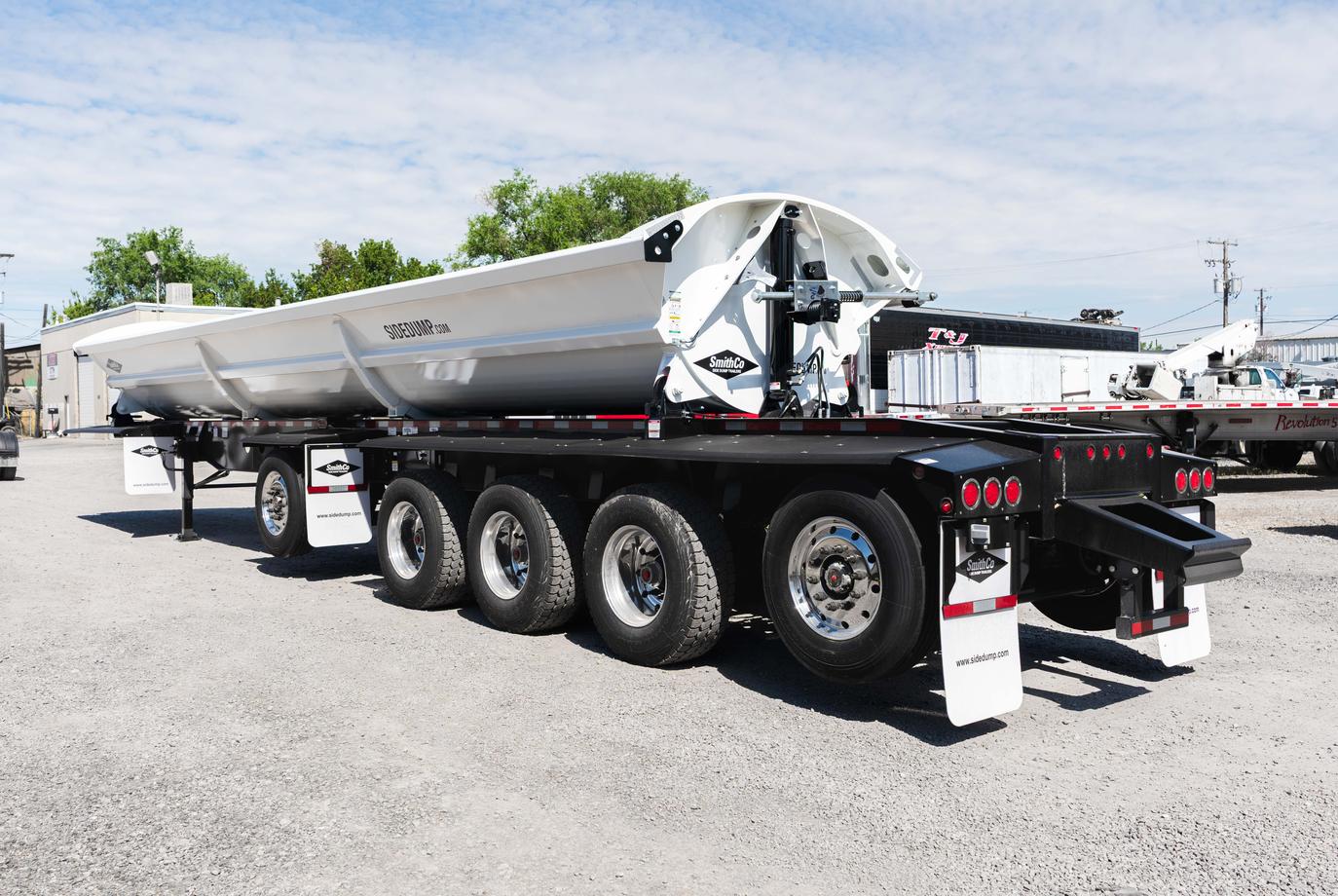

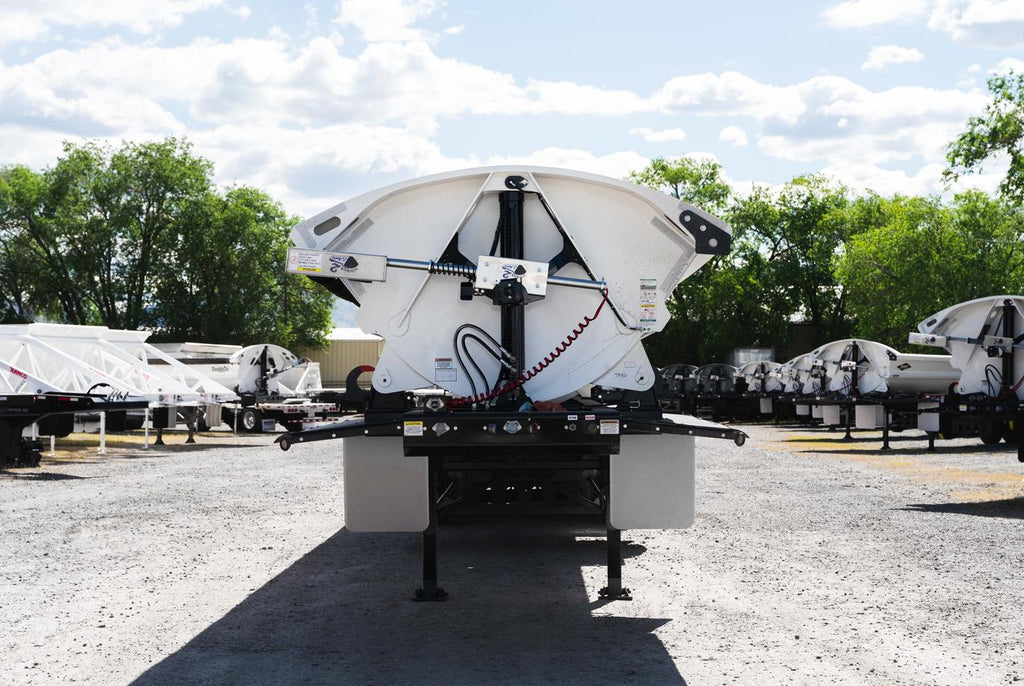

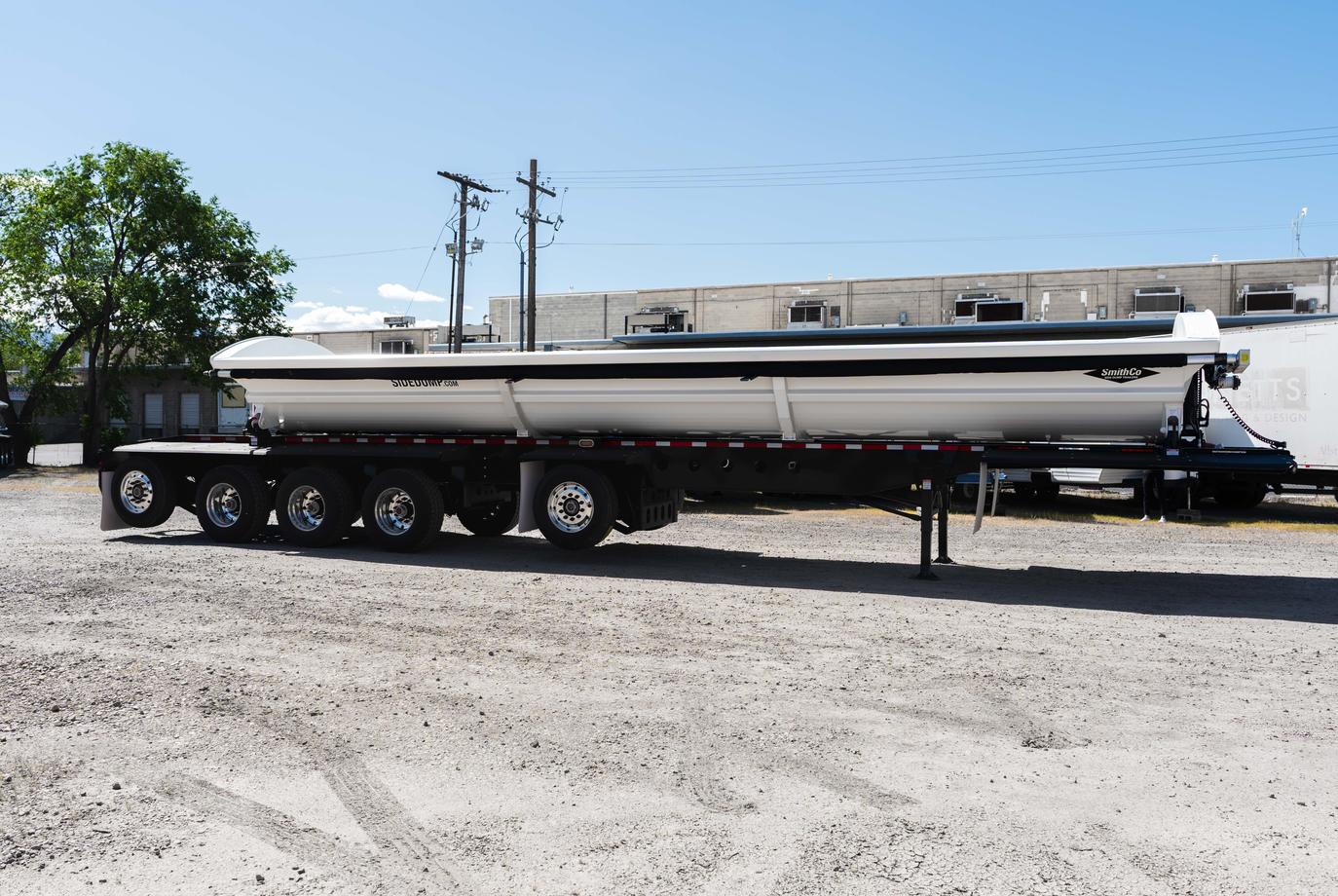

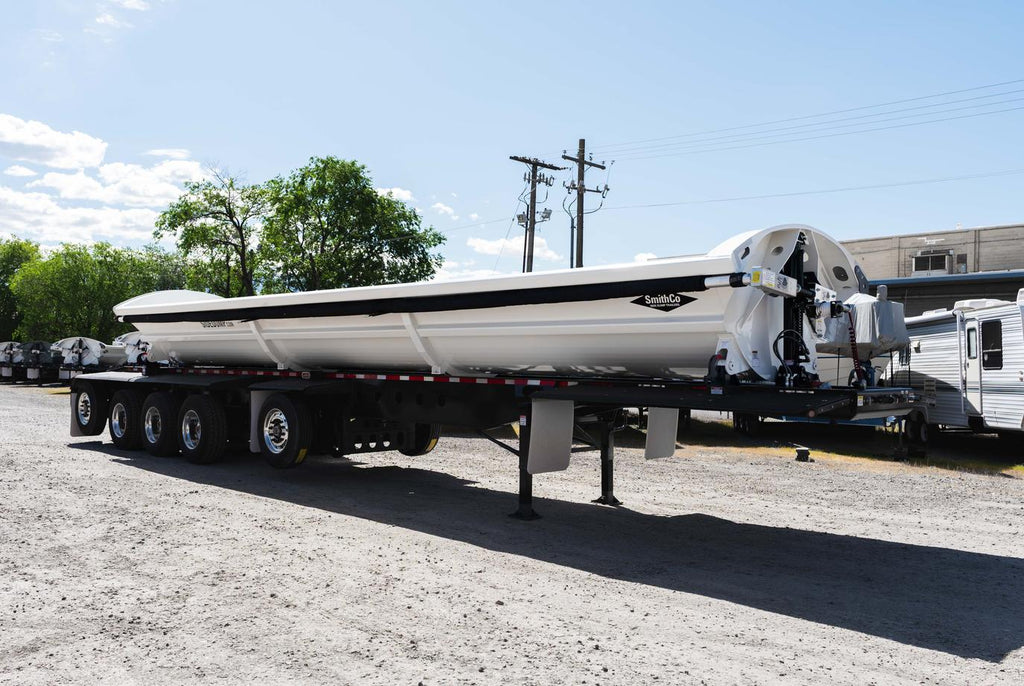

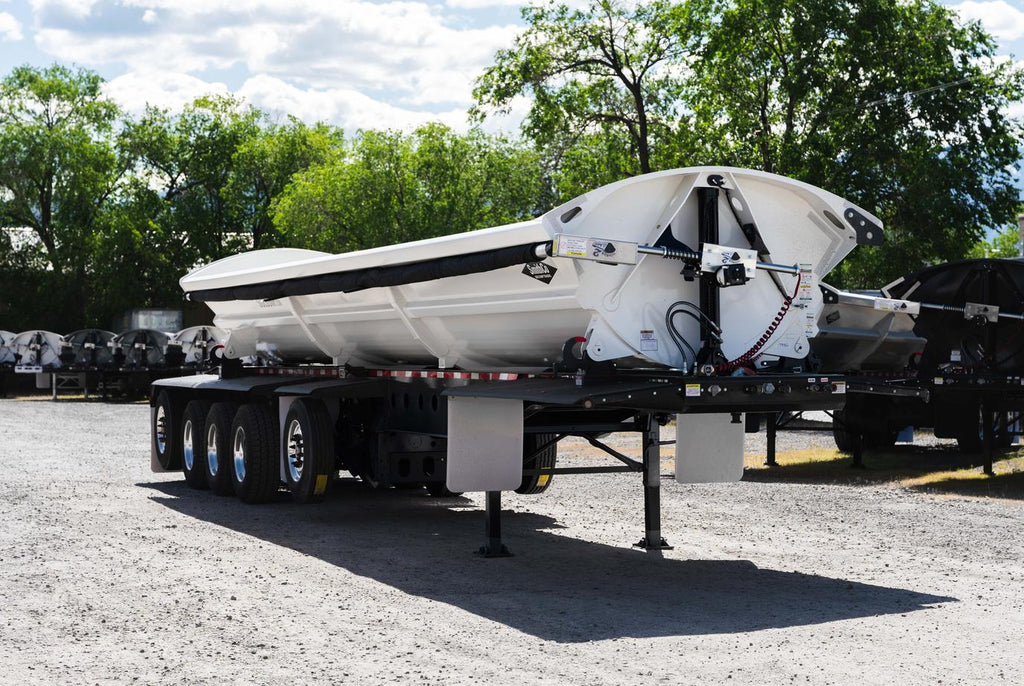

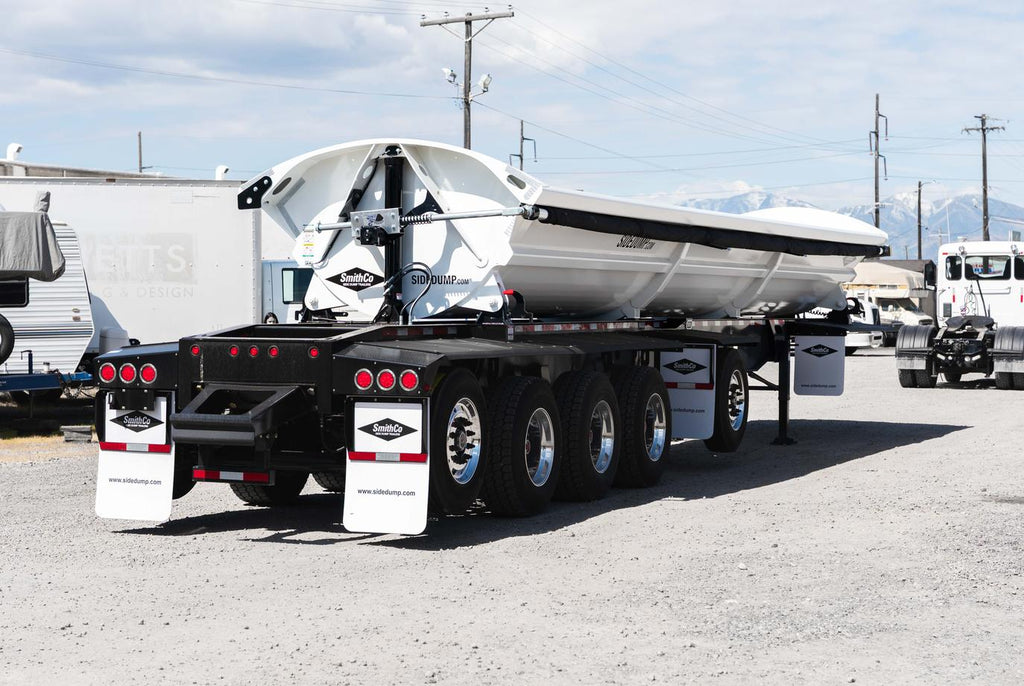

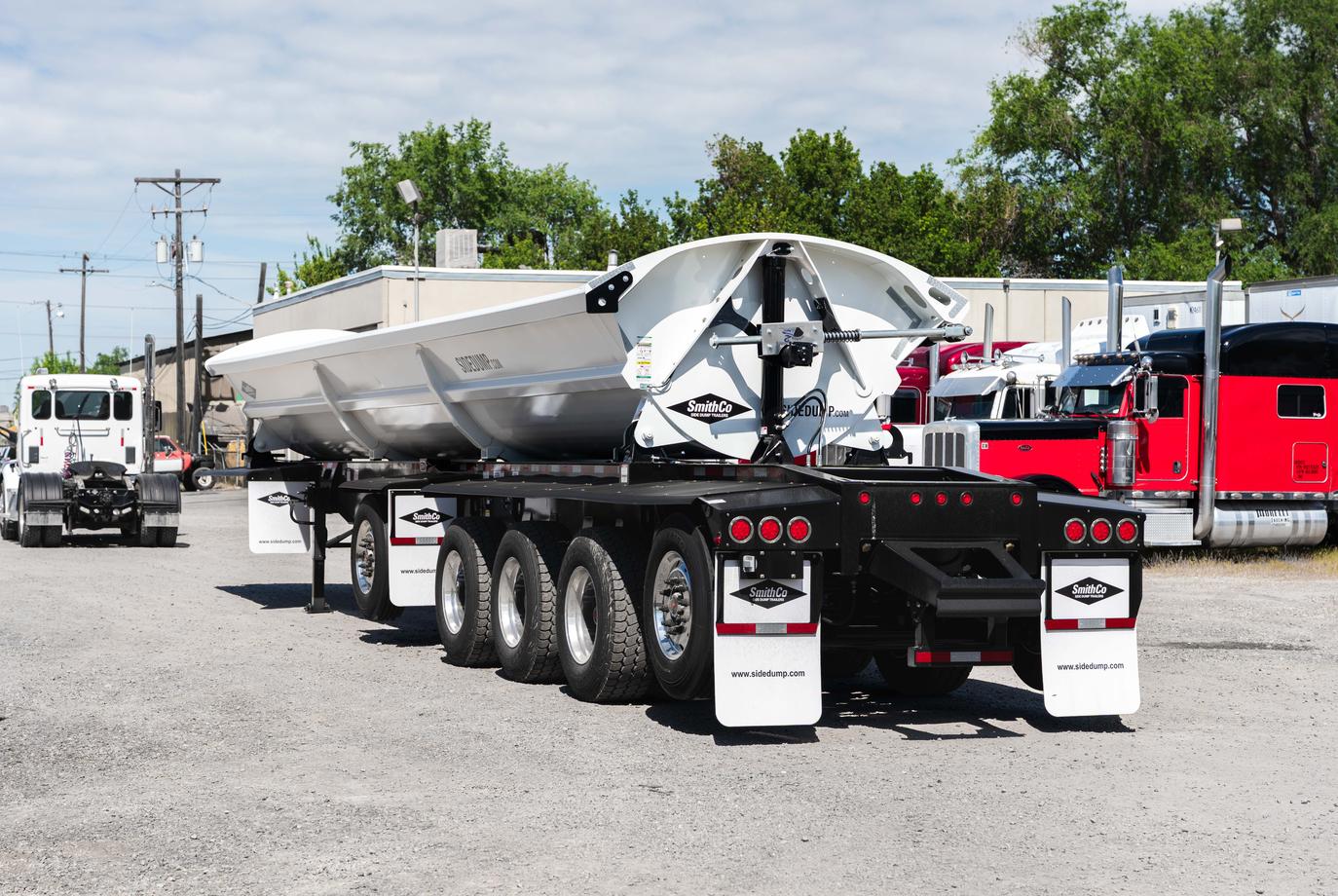

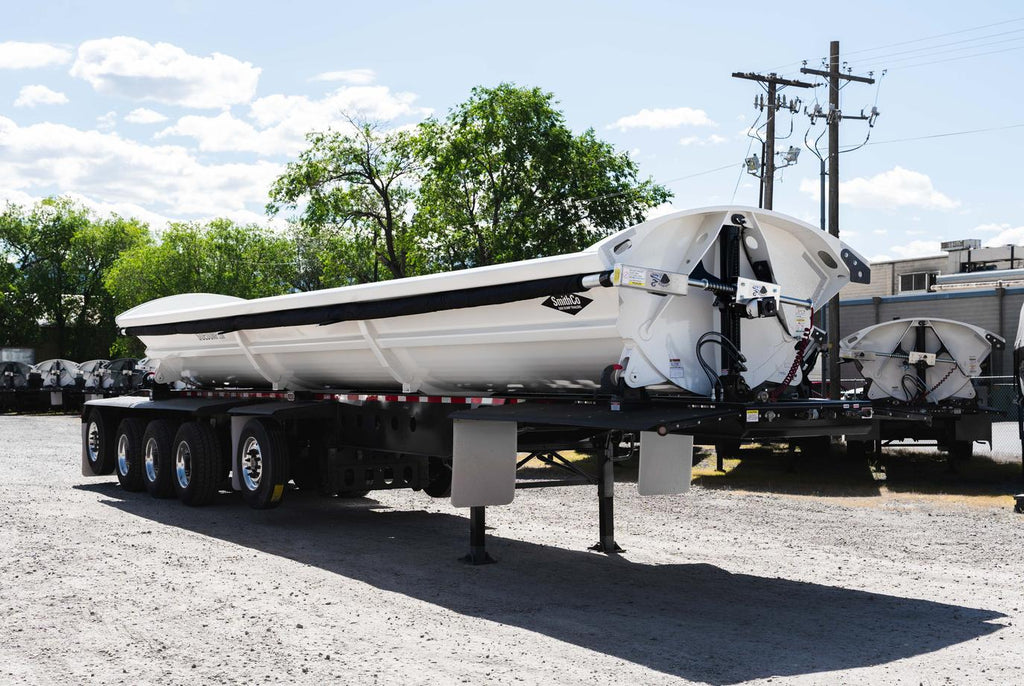

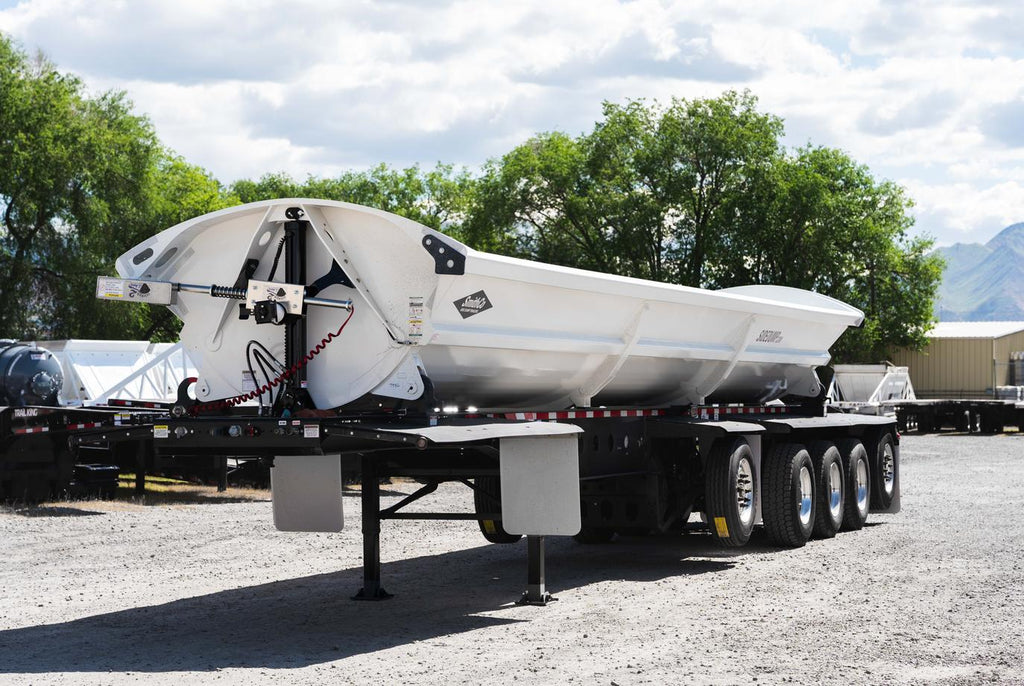

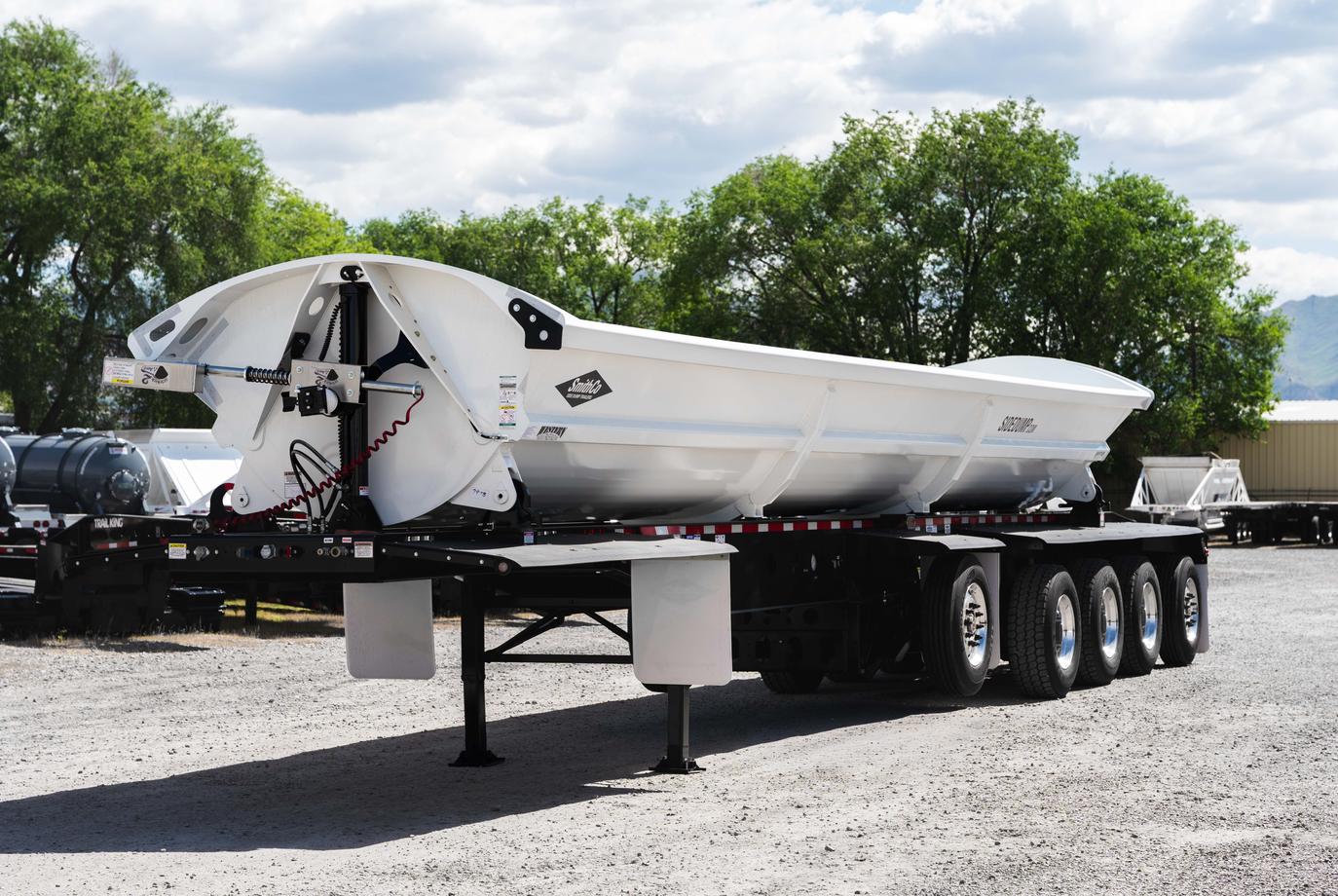

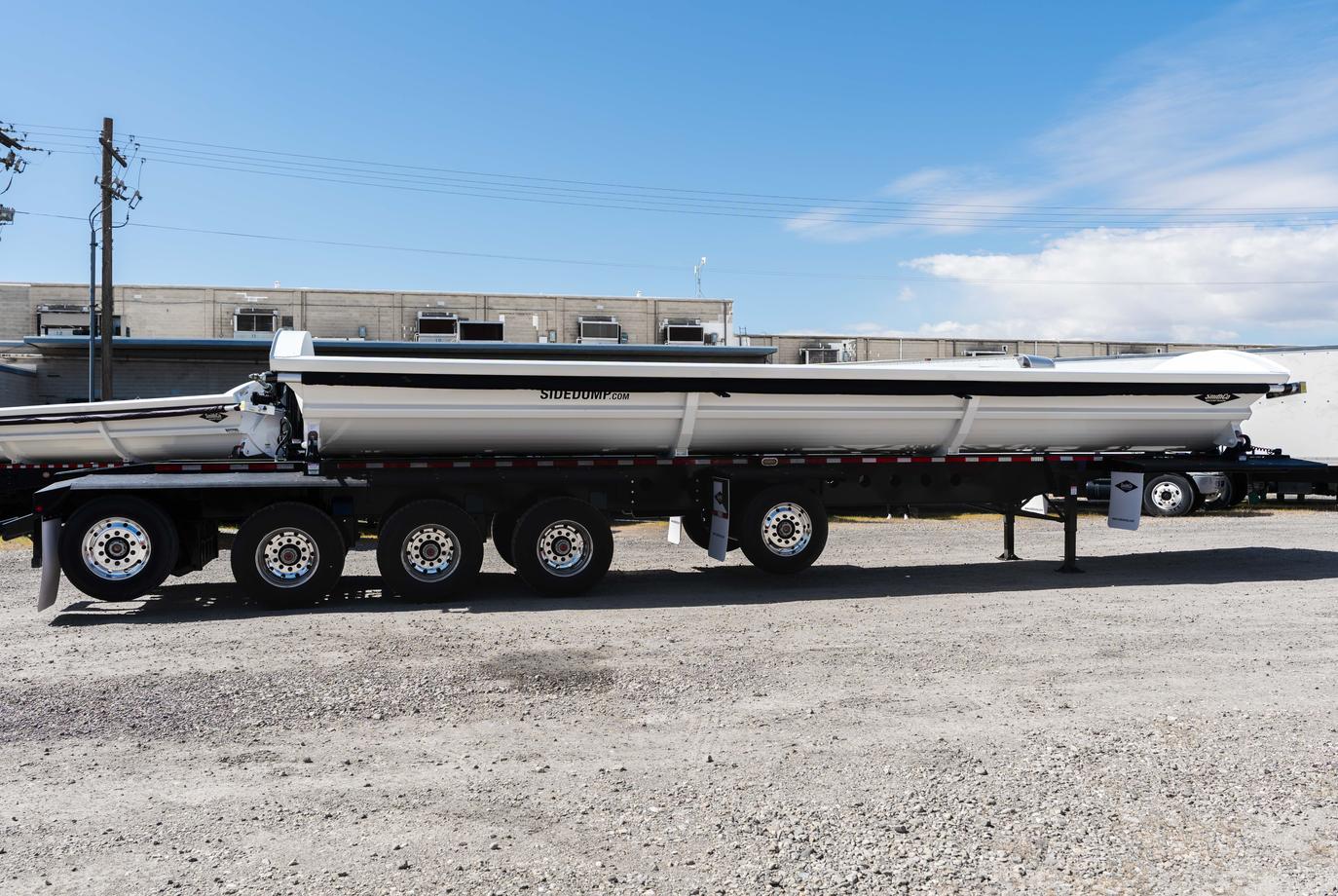

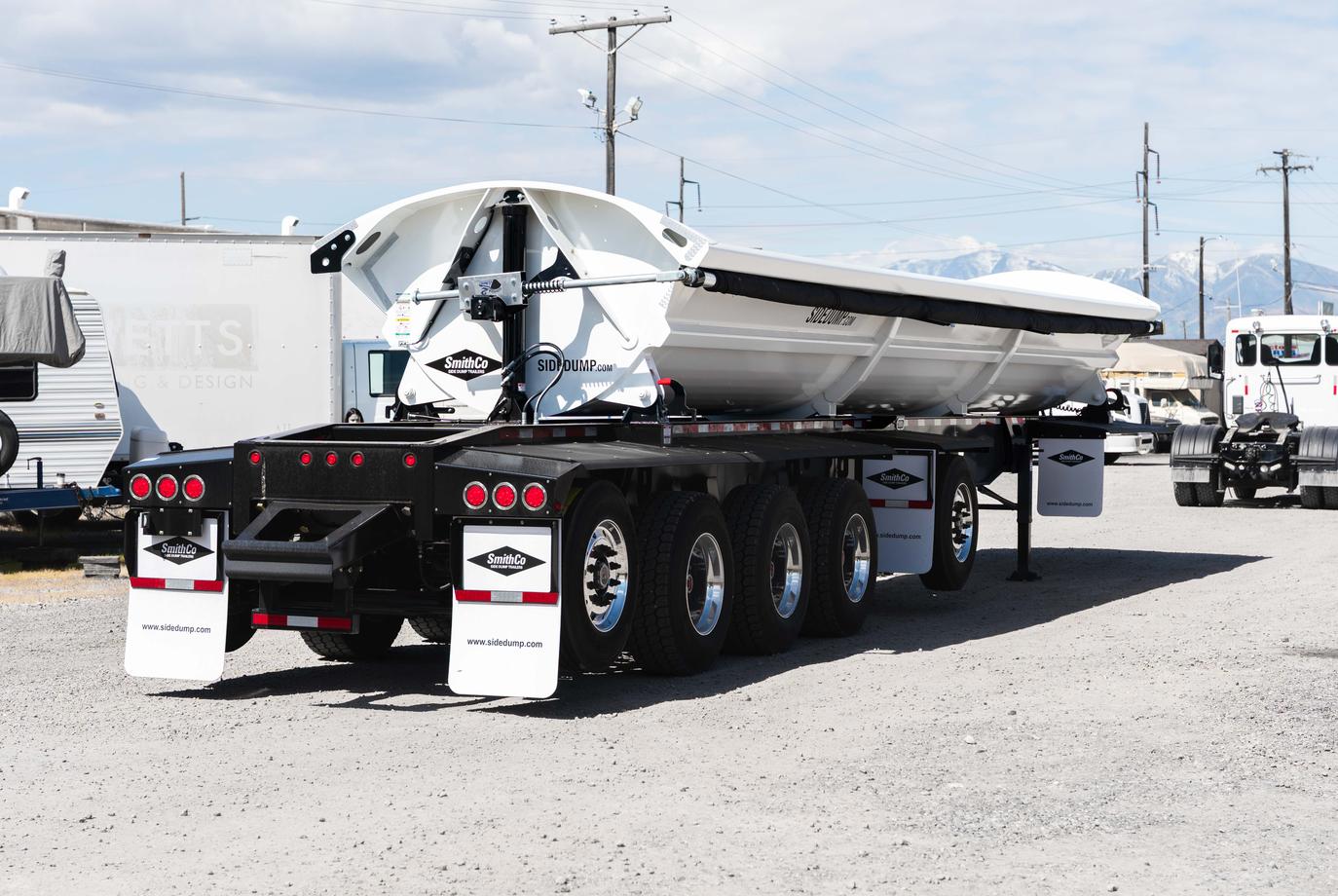

SMITHCO 5 AXLE SIDE DUMP TRAILER

SmithCo SX5-49-38 – Side Dump, 49' frame, 38' tub

SmithCo SX5-49-38 side dump with 38' tub and 1/4" AR400 tub sides and floor.

Key Specs

• Manufacturer: SmithCo
• Model: SX5-49-38
• Category: Side Dump
• Width: 102"
• Frame length: 49'
• Tub length: 38'
• Tub volume (water level): 25.5 CUBIC YARDS
• Tub volume (heaped): 33.8 CUBIC YARDS

Tub Construction

• Tub style: SX-ROUND BOTTOM
• Tub sides: 1/4" AR400
• Tub floor: 1/4" AR400
• Tub dividers: 0

Hydraulics & Control

• Hydraulics: 5" CYLINDERS
• Valve on trailer: HYDRAULIC CONTROL VALVE ON TRAILER (AIR/HYDRAULIC)
• Grease bank for hydraulic cylinders: FRONT AND REAR - STD

Axles & Suspension

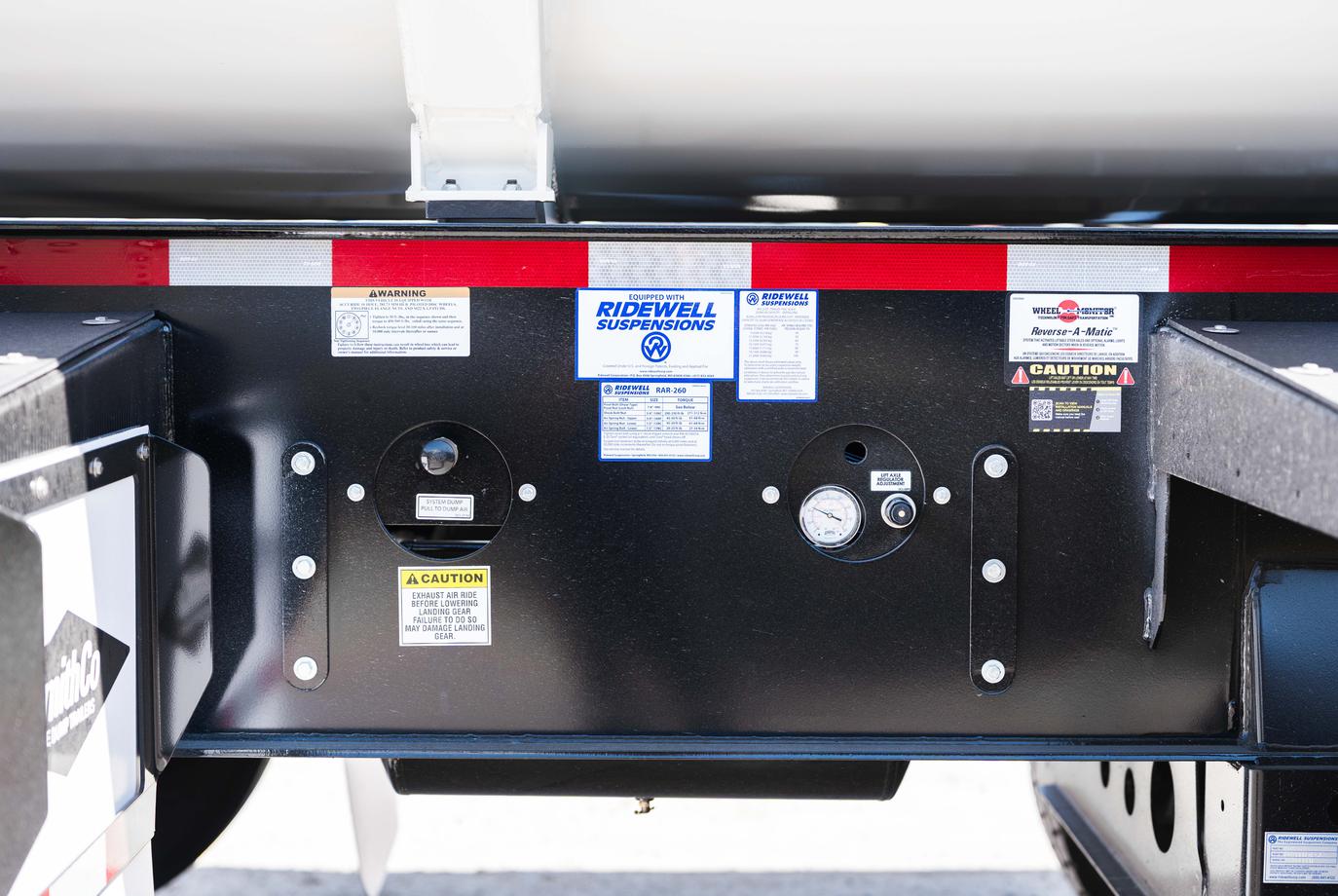

• Suspension: RIDEWELL RW260
• Axle spacing: 97"-54"-54"-60"
• Lift axle: 1ST & 5TH (16.6K RW L/S)
• ABS-axles: 25K 1
• Non-ABS axles: 25K 4
• Axle track: 77.5"-STD

Wheels & Tires

• Hubs: DURALITE-STD
• Brakes: 16-1/2" x 7"
• Drums: CAST STEEL
• Wheel style: HUB-PILOTED U/M
• Wheel type: AL SS 12.25x22.56 SUPER SINGLE ALUM ON TRIAXLE, (4) 9" ALUM ON STEERS
• Tires: 385/65R22.5 "J" PLY SUPER SINGLE 6 385/65 ON TRIAXLE, (4) 295/75 ON STEERS

Additional Features

• Dolly legs: BINKLEY
• Fenders: ALL PLASTIC
• Tub paint #: DV-19088 (WHITE)
• Frame paint #: DV-19040-DTM (BLACK)
• Tarp brand: AERO
• Tarp type: MESH-NON SEALED
• Lock out switch: TARP LOCKOUT
• Pushblock: W STYLE PUSHBLOCK - STD
• Large liquid filled air gauge: DRIVER'S SIDE - STD

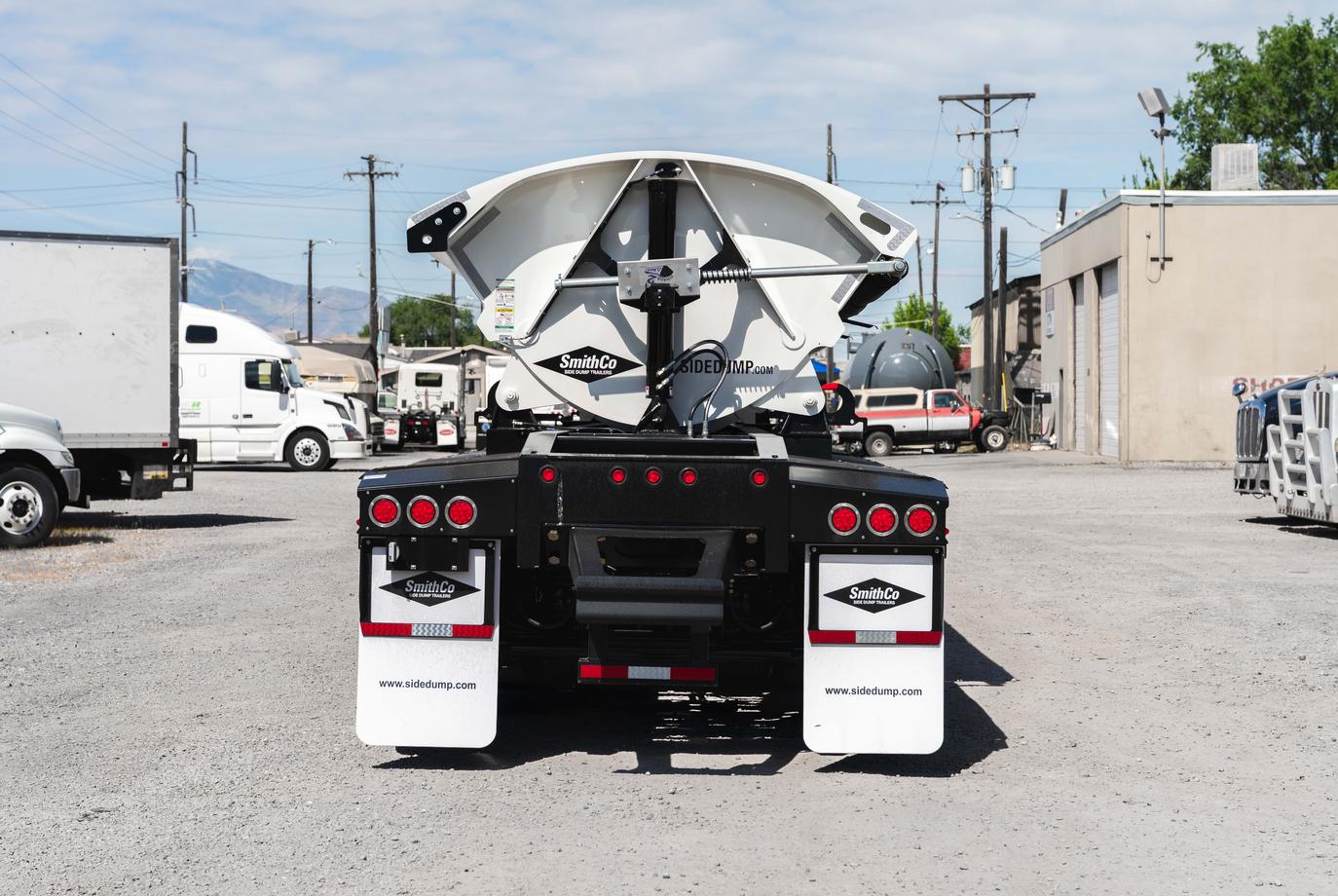

Lighting & Safety

• Taillights: 3 TAILLIGHTS - RED
• ID lights: 5 ID LIGHTS AT REAR
