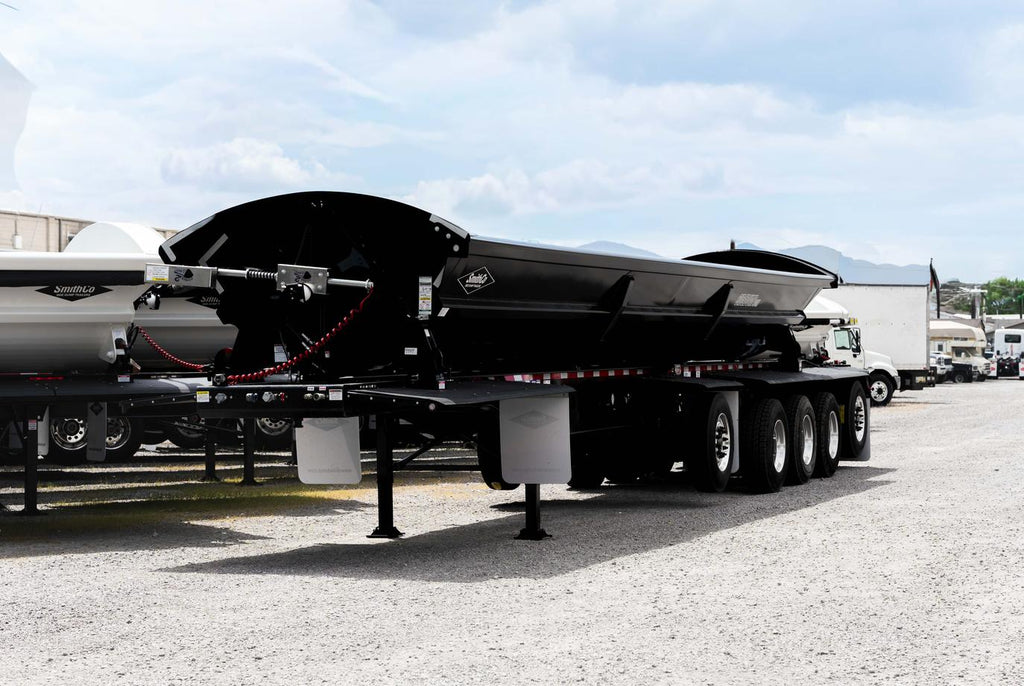

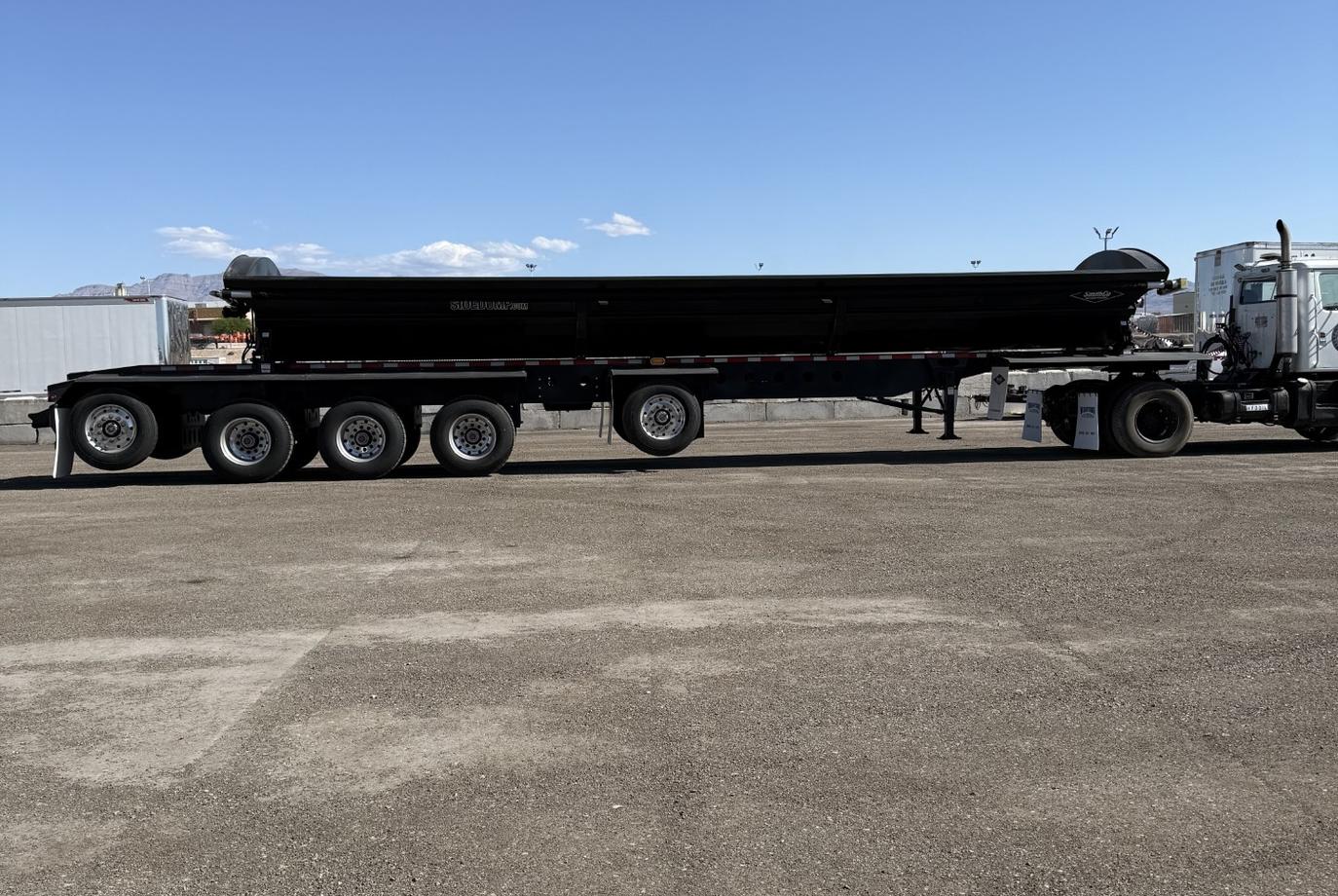

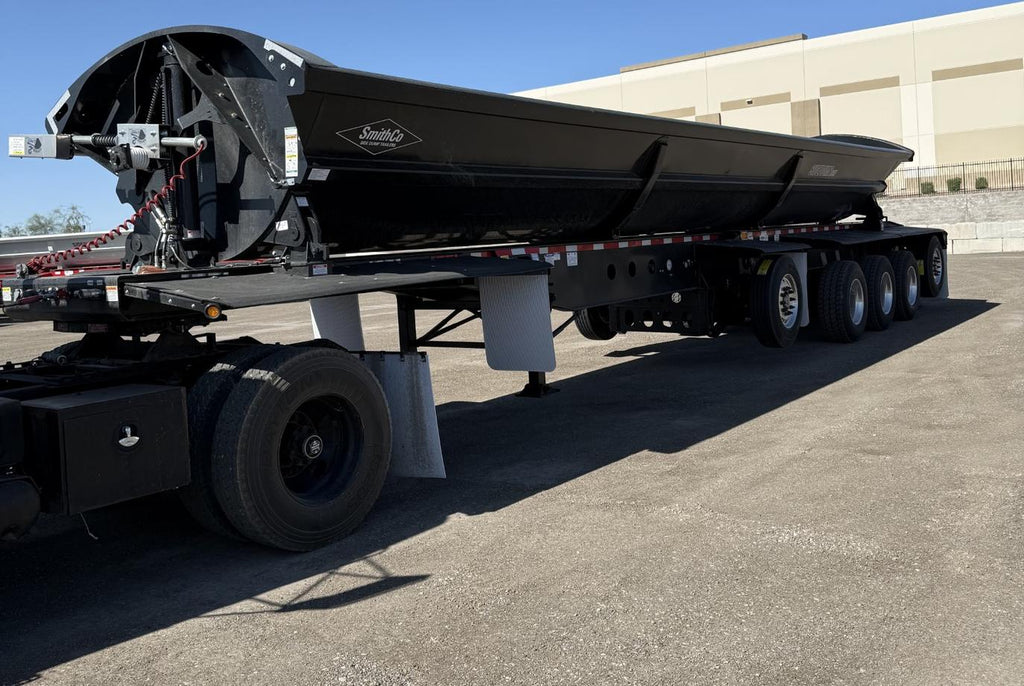

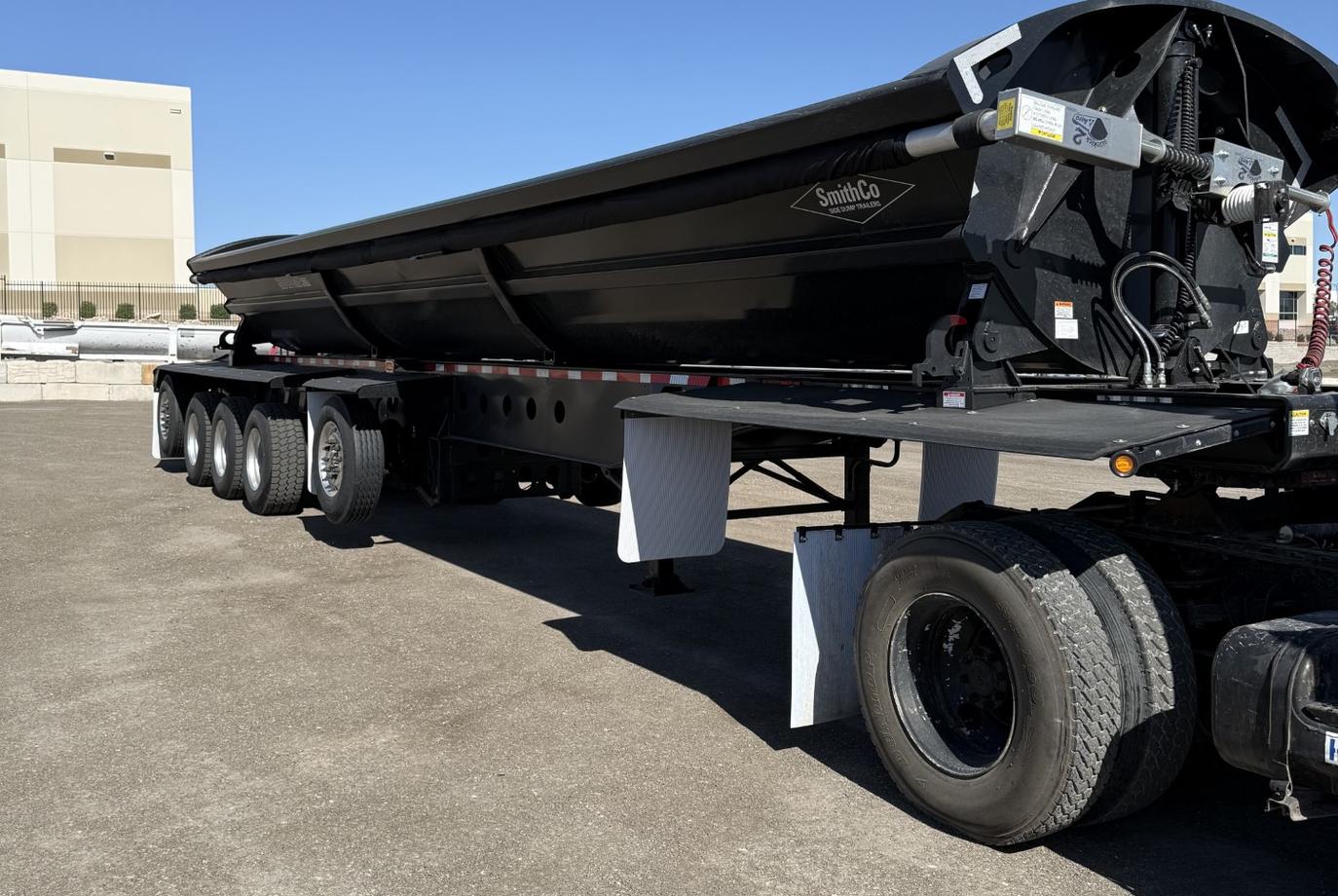

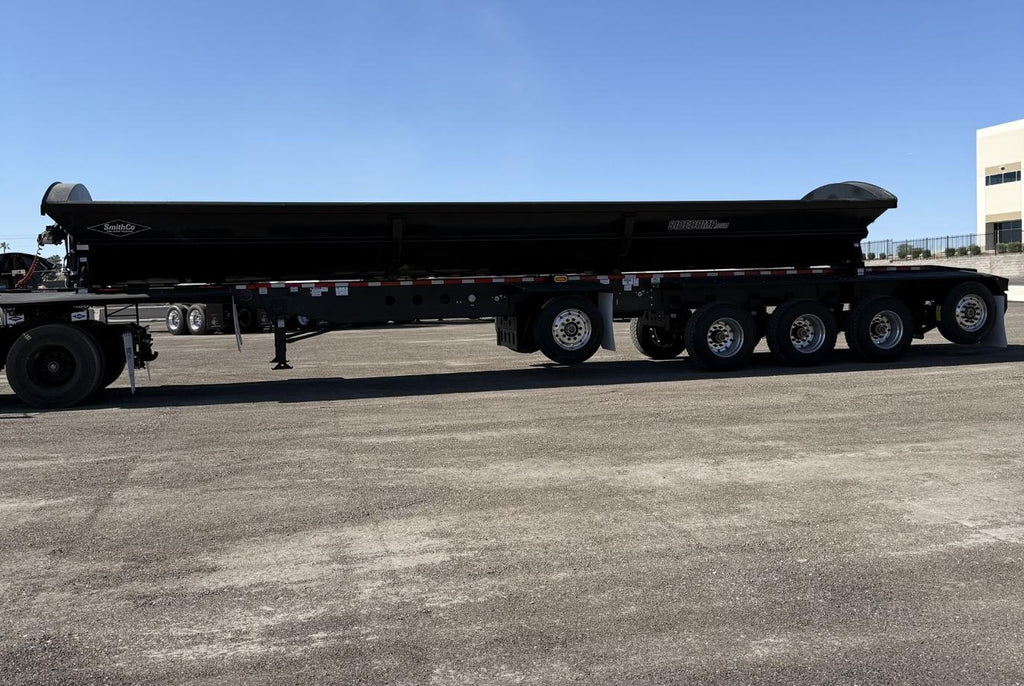

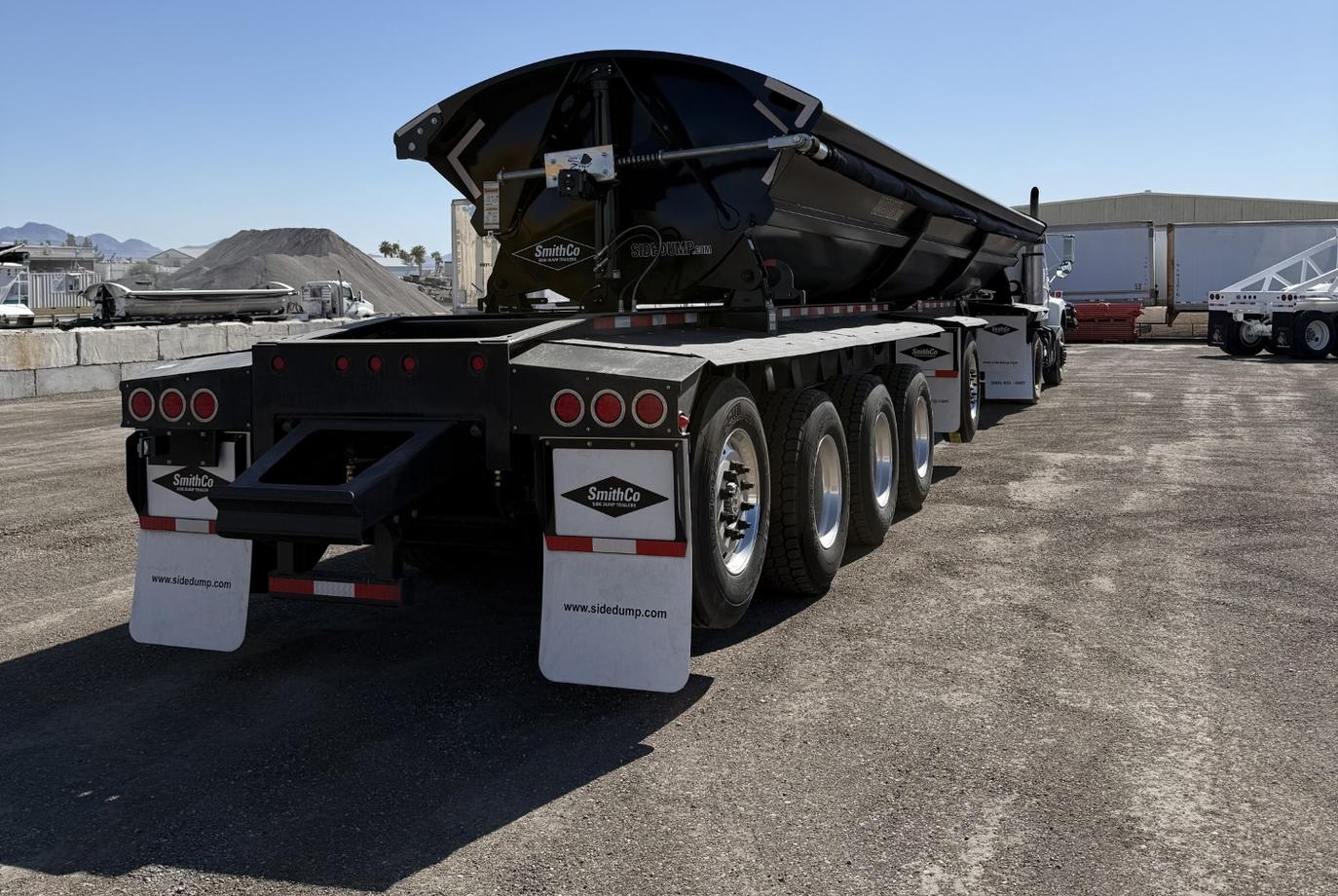

NEW SMITHCO SX5 SUPER SIDE DUMP TRAILER

SmithCo SX5-49-38 – Side Dump, 49' frame, 102" wide

SmithCo SX5-49-38 Side Dump with SX-ROUND BOTTOM tub and 1/4" AR400 sides and floor.

Key Specs

• Manufacturer: SmithCo
• Model: SX5-49-38
• Category: Side Dump
• Frame Length: 49'
• Tub Length: 38'
• Width: 102"
• Tub Volume (water level): 25.5 CUBIC YARDS
• Tub Volume (heaped): 33.8 CUBIC YARDS

Tub Construction

• Tub Style: SX-ROUND BOTTOM
• Tub Sides: 1/4" AR400
• Tub Floor: 1/4" AR400
• Tub Dividers: 0

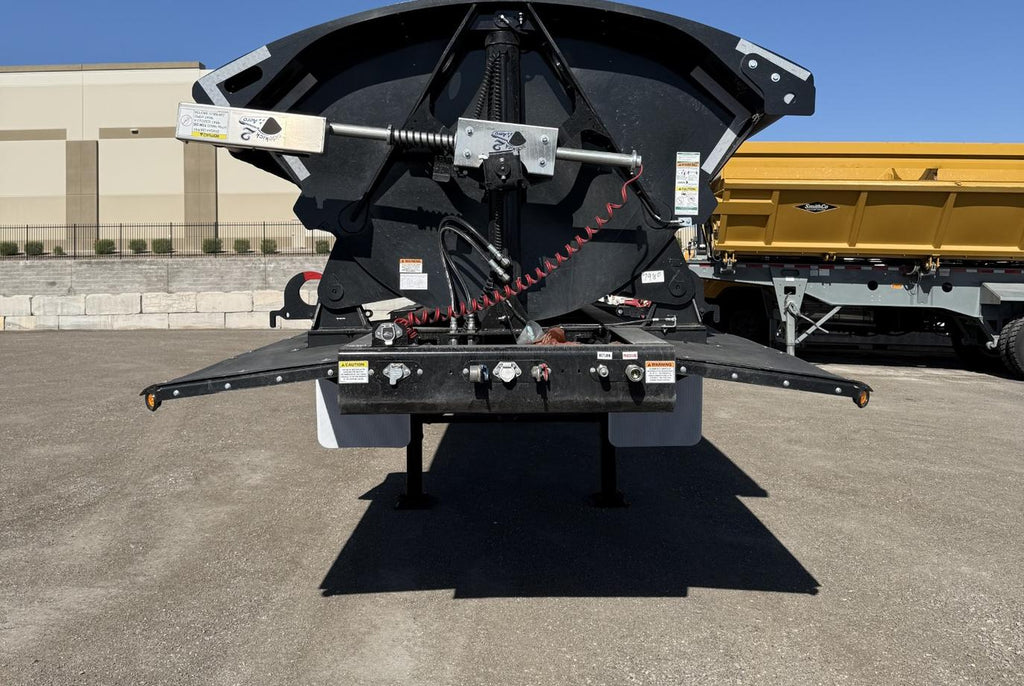

Hydraulics & Control

• Hydraulics: 5" CYLINDERS
• Valve on trailer: HYDRAULIC CONTROL VALVE ON TRAILER (AIR/HYDRAULIC)
• Grease bank for hydraulic cylinders: FRONT AND REAR - STD
• Lock out switch: TARP LOCKOUT
• Large liquid filled air gauge: ON DRIVER'S SIDE - STD

Axles & Suspension

• Suspension: RIDEWELL RW260
• Axle Spacing: 97"-54"-54"-60"
• Lift Axle: 1ST & 5TH (16.6K RW L/S)
• ABS Axles: 25K 1
• Non-ABS Axles: 25K 4
• Axle Track: 77.5"-STD
• Hubs: DURALITE-STD
• Brakes: 16-1/2" x 7"
• Drums: CAST STEEL
• Dolly Legs: BINKLEY

Wheels & Tires

• Wheel Style: HUB-PILOTED U/M
• Wheel Type: AL SS 12.25x22.56 SUPER SINGLE ALUM ON TRIAXLE, (4) 9" ALUM ON STEERS
• Tires: 385/65R22.5 "J" PLY SUPER SINGLE 6 385/65 ON TRIAXLE, (4) 295/75 ON STEERS

Paint & Finish

• Tub Paint #: DV-19040 (BLACK)
• Frame Paint #: DV-19040-DTM (BLACK)
• Fenders: ALL PLASTIC

Additional Features

• Tarp Brand: AERO
• Tarp Type: MESH-NON SEALED
• W Style Pushblock: STD

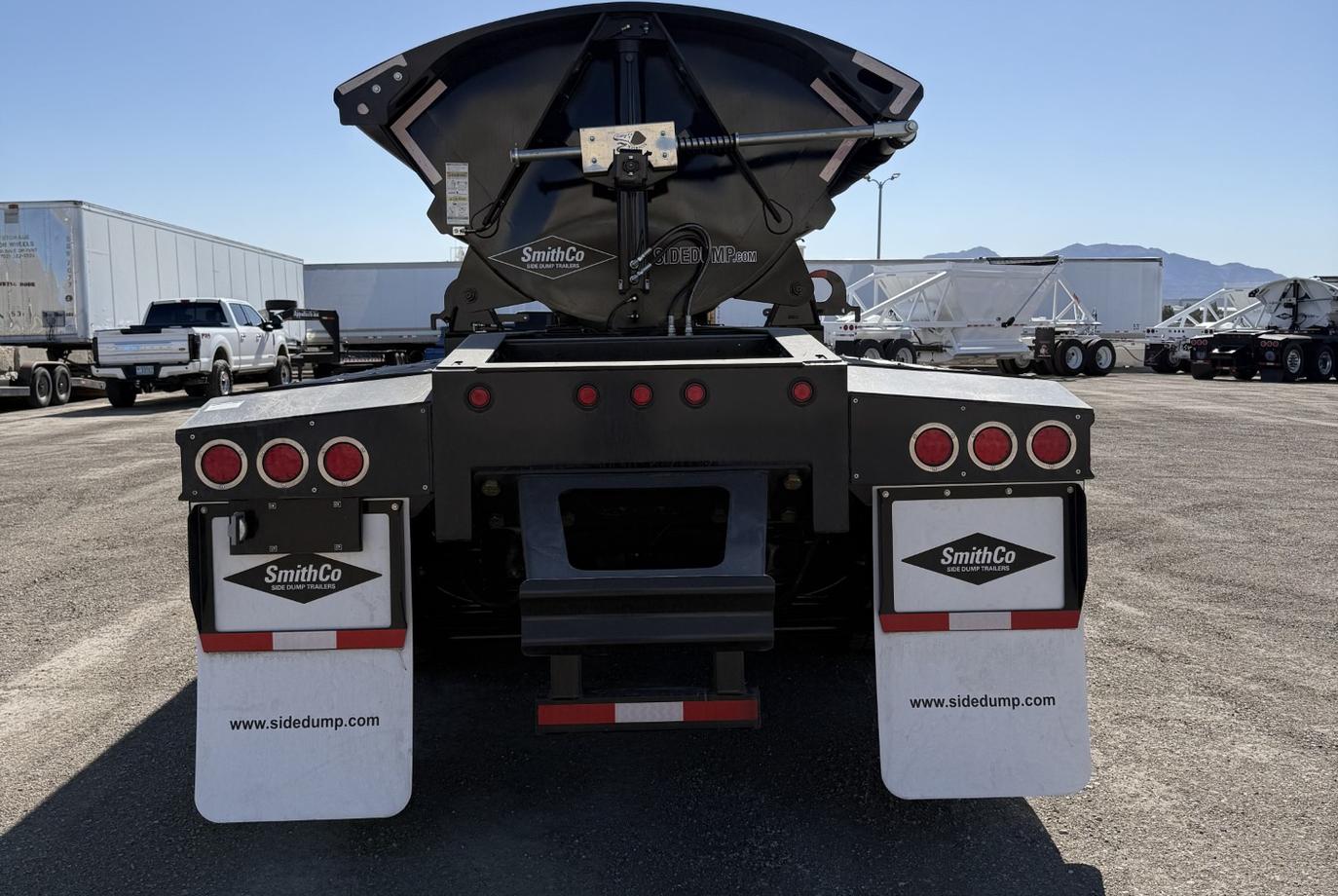

Lighting & Safety

• Taillights: 3 - RED
• ID lights at rear: 5
