CONSTRUCTION TRAILER SPECIALISTS SAND HOPPER TRAILER

CONSTRUCTION TRAILER SPECIALISTS FRAC MASTER – Specialty, 38’ x 96”

CONSTRUCTION TRAILER SPECIALISTS FRAC MASTER specialty trailer with length 38’ and width 96”.

Key Specs

• Length: 38’
• Height: 72”
• Width: 96”
• No. of axles: 2
• End type: SLOPED

Tub Construction

• Top/bottom rail: 4" x 6" x 3/16" TUBE
• Hoppers: 14 GAUGE
• Headers/bows: STEEL

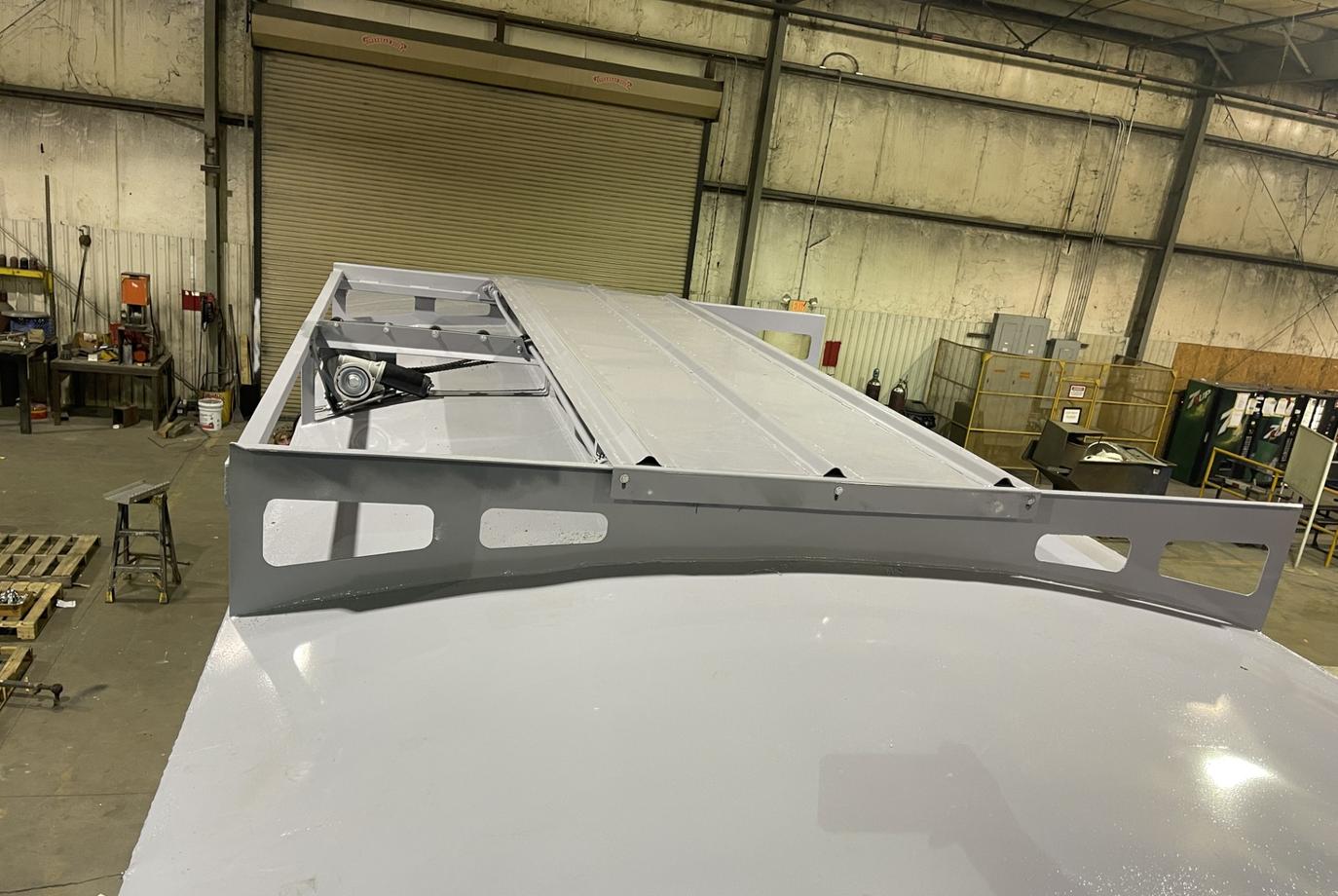

• Tarp: STEEL ENCLOSURE W/ELEC OVER AIR DOOR
• Tarp color: BLACK

Axles & Suspension

• Suspension: OEM AIR RIDE SUSPENSION
• Axles: 25,000 LB WITH OUTBOARD DRUMS, 5/8" WALL AND OIL SEALS
• Axle type: OEM
• ABS brakes: ABS ON ONE AXLE, 2 SENSORS AND MODULAR VALVE

Wheels & Tires

• Wheels: (8) ALUMINUM MILL FINISH WHEELS
• Tires: 11Rx 22.5 (OEM)
• Tire brand: OEM

Doors & Access

• Doors: 24" x 24" GATE OPENING ELECTRIC LOWER DOORS
• Ladders: REAR ONLY
• 5th wheel: 18"
• Landing gear: 2-SPEED LANDING GEAR
• Bumper: N/A

Electrical & Lighting

• Electrical: ICC AND DOT APPROVED LIGHTING SYSTEM

Additional Features

• Mud flaps: ANTI-SAIL
• Paint: STANDARD
• Paint color: GRAY
• Optional suspension: OEM AIR RIDE SUSPENSION
• Optional doors: ELECTRIC LOWER DOORS
• Optional enclosure: STEEL ENCLOSURE W/ELEC OVER AIR DOOR
• Optional tires: 11R x 22.5 RADIALS
• Optional wheels: LIGHTWEIGHT HUBS & DRUMS; POLISHED ALUMINUM WHEELS (PER WHEEL)
• Options: VIBRATOR MOUNT PACKAGE (FRONT SLOPE/REAR HOPPER); DOUBLE PRIMER (COLD CLIMATE AREA)
